Heartland AG Systems Equipment | NH3 Wagons

Heavy-duty versatility for safe and reliable portable storage

AG 62 Specifications

• 60” fixed wheel track center to center
• 3600# pound hubs and spindles
• 14,000 # GVW
• 6 on 6 hub pattern
• 2” diameter spindles
• Standard 8” x 15” rims
• Will accommodate a leg tank spacing of 108” or 120”
• Solid extended hitch pole for front tank clearance
• Dual leaf spring bolsters
• The 18” extra heavy-duty 5th wheel plate is the largest in the industry
• 3” Reach tubing ¼” wall into 3 ½” tubing
• Axles are formed from 3” x 5” tubing 3/16” wall.
• 17 ¾” front axle clearance with 11L tires
• 11 gauge formed channel-bracing ties the reach, the rear axle and the struts together in a triangle pattern.
• The rear axle is 1 ½” higher then the front end for better tank drainage
• A rear hitch is provided to pull two tanks
• Pryor Tank Conversions are available

AG 82 Specifications

• Wheel Track: 80″
• Wheel Base: 108″ to 120″
• Front Axle Clearance: 18 1/2″
• Weight (less rims and tires): 770 lbs.
• Hubs: Heavy duty 6 on 6 hub group
• Wheels: 16.1″ x 11″
• Bolsters: Dual, heavy duty spring bolsters with 1/4″ formed top (9 leaves each bolster) mounted on a formed 3/8″ channel
• Axles: Front and rear is 1/4″ wall tubing; back axle bracing is 3/16″ wall formed steel
• Reach Pole: Heavy duty 3″ tubing (1/4″ wall)
• Hitch Pole: Extra length for tank clearance
• Spindles: 2″

AG 86 Specifications

• Wheel Track: 60" to 78″
• Wheel Base: 70″ to 88″
• Front Axle Clearance: 19″
• Weight (less rims and tires): 4500 lbs.
• Hubs: Heavy duty 6 on 6 hub group
• Wheels: 10" x 15" or 16.1″ x 11″ rims
• Bolsters: Dual, heavy duty spring bolsters with 1/4″ formed top (9 leaves each bolster) mounted on a formed 3/8″ channel
• Axles: Front and rear is 1/4″ wall tubing; back axle bracing is 3/16″ wall formed steel
• Reach Pole: Heavy duty 3 1/2″ tubing (1/4″ wall)
• Hitch Pole: Extra length for tank clearance
• Spindles: 2″

AG 103 Specifications

• Wheel Track: 72″
• Wheel Base: 108″ to 120″
• Front Axle Clearance: 17 3/4″ also available in low profile 10″ clearance
• Weight (less rime and tires): 620 lbs.
• Hubs: 6 on 6 hubs
• Wheels: 15″ x 8″ or 15″ x 10″
• Bolsters: 6 leaves, 1/4″ formed top
• Axles: back axle bracings is 11 gauge formed steel
• Reach Pole: 3″ reach tubing (1/4″ wall)
• Hitch Pole: Extra length for tank clearance
• Spindles: 2″
• Pole Option: Spring-loaded pole

AG 106 Specifications

• Wheel Track: 60″ to 80″
• Front Axle Clearance: 19″
• Wheel Base: 108″ to 120″
• Weight (less rims and tires): 680 lbs.
• Hubs: 6 on 6 hub group
• Wheels: 15″ x 8″ or 15″ x 10″
• Bolsters: Dual 7-leaf bolsters (1/4″ formed top)
• Axles: 4″ x 4″, 6-gauge outer tubing slides over 3 1/2″ x 3 1/2″, 1/4″ wall inner tubing
• Reach Pole: Heavy duty 3″ Tubing, 1/4″ wall
• Hitch Pole: Extra length for tank clearance
• Spindles: 2″
• Brake Option: Two-wheel surge

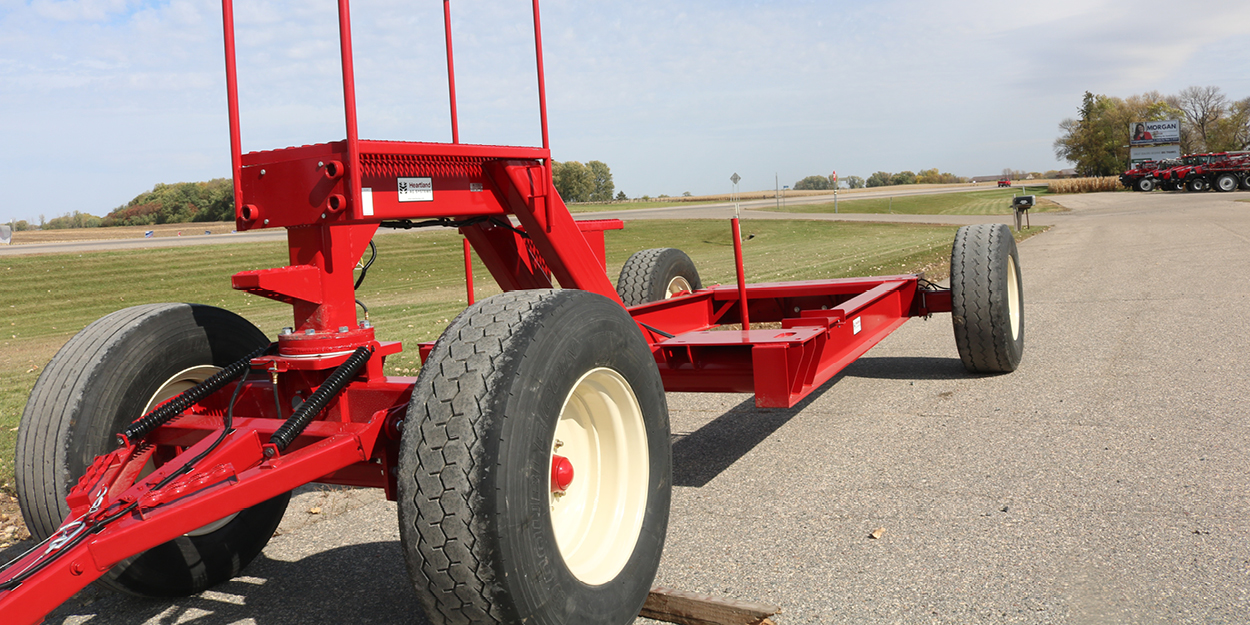

AG 206 Specifications

• Easy Lift Assist Telescoping Pole
• 6″ x 6″ 3/8″ Front Axle
• 18″ Front Axle Clearance
• 60″ Wheel Track
• 2″ King Pin
• 2 3/4″ Heavy Duty Spindles
• 8 on 8 Hubs
• Safety Platform with Railings
• 10 1/2″ x 6″ I-Beam Frame
• 5″ x 5″ x 3/8″ Rear Axle
• 13″ Ground Clearance
• 96.5 Rear Wheel track
• 2-Wheel Surge Brakes
• 24,000# GVW
• Wheel Base 200″

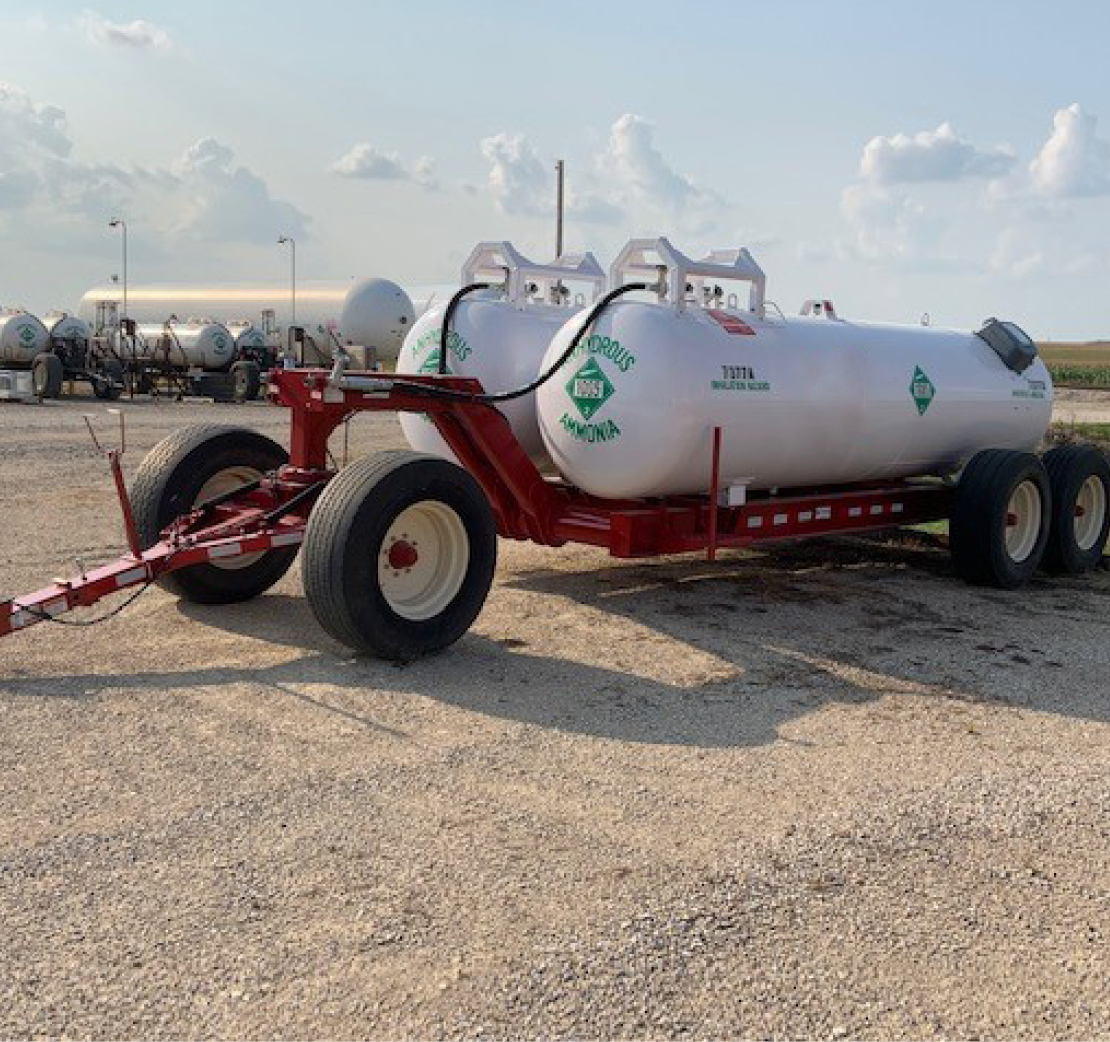

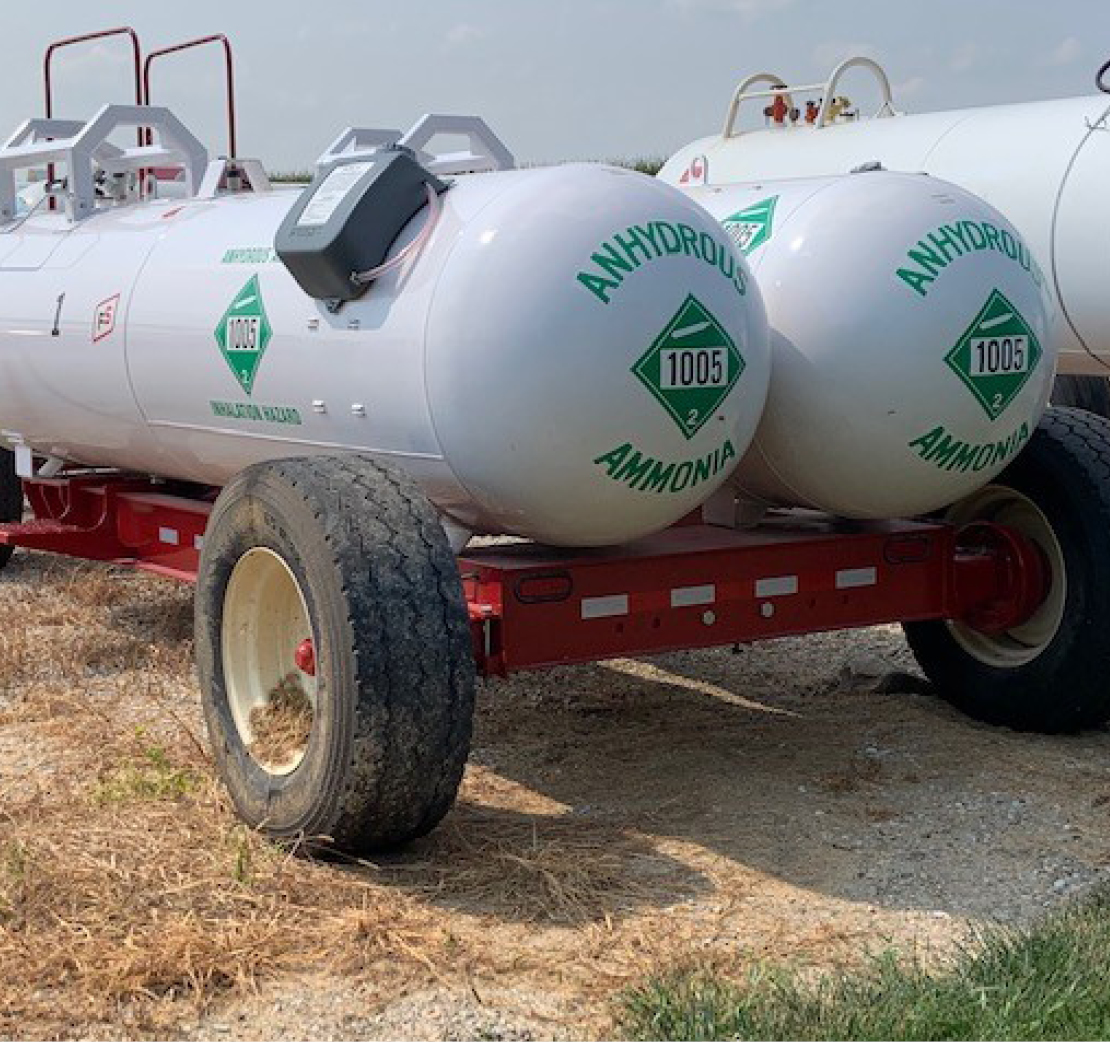

AG 207 Specifications

• Designed for 2 – 1450 gallon NH3 tanks with Easy Lift Telescoping Pole.
• 6″ x 6″ x 3/8″ Front Axel
• 60″ Front Wheel Track
• 106 3/4″ Center to Center Rear Wheel Track
• 2 3/4″ Spindles
• 8 on 8 Hubs
• 36,000# GVW
• 225″ Wheel Base
• 4-Wheel Hyd. Surge Brakes
• Standard Access Steps Both Sides
• Shown with 425/65R 22-5 Recap Tires
• Optional Tires Available
